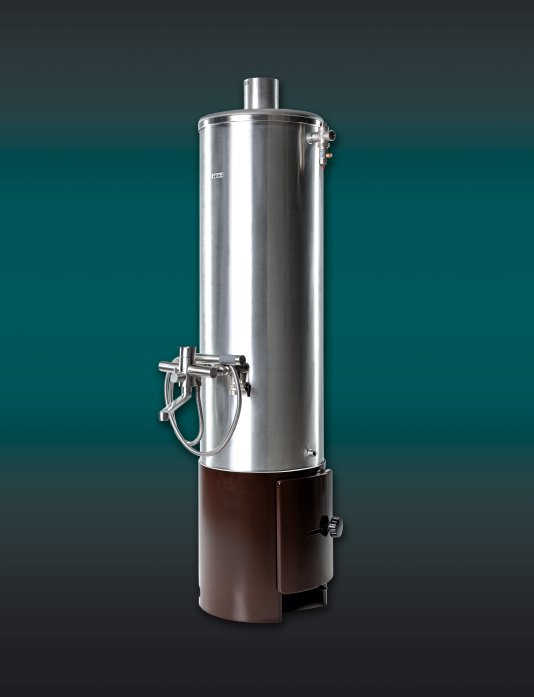

This bath heater is a reliable solution for hot water in your home, garden shed, retreat or even your cabin in the woods or mountains.

Equipped with a robust stainless steel water tank, it can hold up to 6 bar pressure. The bath heater can be used either stationary or as a hot water boiler for other taps. The underheater can be fired traditionally with solid fuels. This means you are independent of electricity, district heating or similar for the production of warm or hot water.

Technical data for the top oven

• Stainless steel water tank
• pressure-resistant up to max. 6 bar
• Water capacity 100 litres
• Water connection 3/4" external thread
• Mixer tap distance 150 mm (optionally supplied with mixer tap)
• Drain valve 1/4"
• thermal drain safety device
• Temperature measuring strip - reversible
• Overpressure safety valve
• Minimum chimney draught 10 Pa
• Flue pipe connection Ø 100 mm
• Ø 368 mm
• Height 1100 mm ±10 mm
• Unladen weight approx. 24 kg
• Heating time approx. 35 minutes
